APEX VNA™ Test Cables
Ready For Your High Frequency Testing Challenges

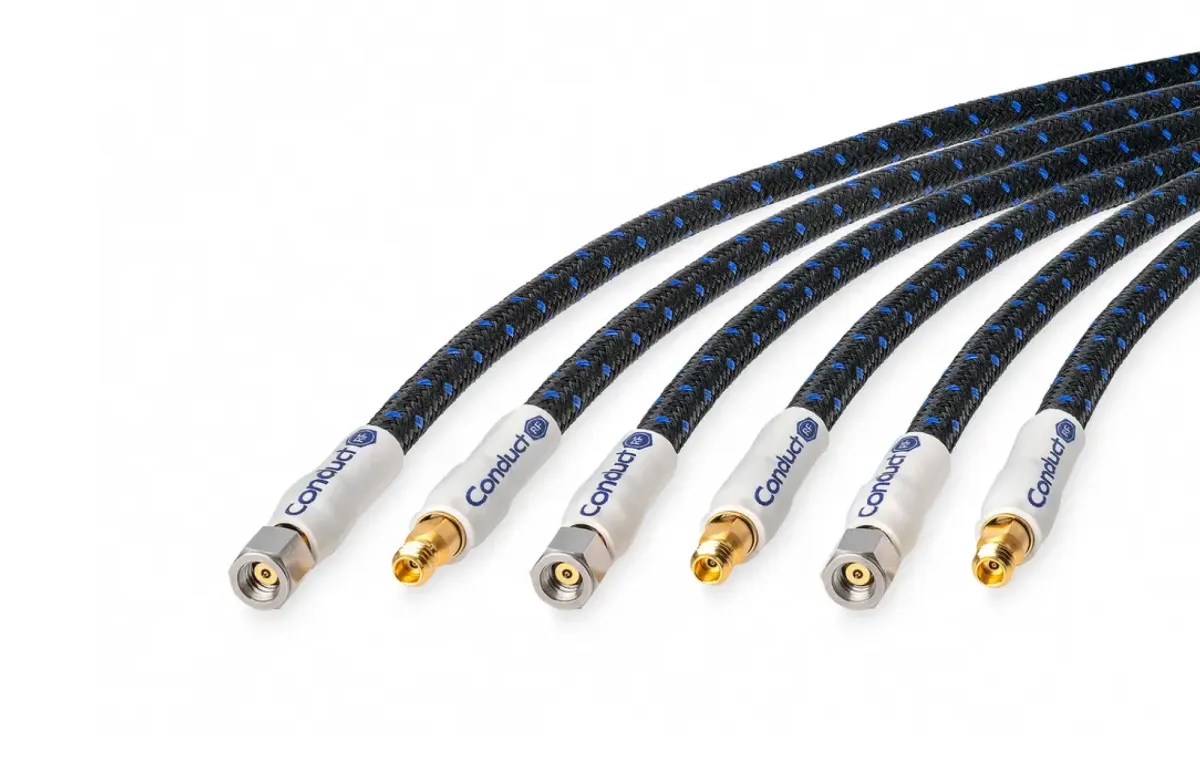

Incredibly Precise, Surprisingly Flexible Millimeter-wave Cables Capable Up to 120 GHz
Overview
Apex VNA Test Cables represent the highest-frequency solution within the ConductRF True VNA family. Designed for millimeter-wave measurement environments, Apex cables support RF testing through 120 GHz while maintaining stable electrical performance.
These cables incorporate precision 1.0 mm connector interfaces and a flexible cable construction optimized for advanced RF measurement environments.
APEX-VNA™ Test Cables at a Glance
DC to 120 GHz
50 Ohm
1.45:1 Max
3.28 – 8.53 dB
±2°
±0.05 dB
78%
29.4 pF/ft
>100 dB
1.0 mm
0.20/5.0 (in./mm)
0.5/13 (in./mm)
75 lbs./in.
500+ cycles
-55°C to +125°C
SHOP Apex VNA Test Cables
Compare | Pricing Login | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 | 120 | 1.0mm (M) | 1.0mm (M) | 1.45:1 | 3.28 | 1 | +/- 3 | +/- 2 | +/- 0.05 | 78 | 25.9 | 4.3 | > 100 | 0.2 / 5.0 | 500+ | 0.5/13 | 75 / 330 | -55 to +125 | 4-6 | — | ||
| 12 | 120 | 1.0mm (M) | 1.0mm (M) | 1.45:1 | 5.91 | 1 | +/- 3 | +/- 2 | +/- 0.05 | 78 | 25.9 | 4.3 | > 100 | 0.2 / 5.0 | 500+ | 0.5/13 | 75 / 330 | -55 to +125 | 4-6 | — | ||
| 18 | 120 | 1.0mm (M) | 1.0mm (M) | 1.45:1 | 8.53 | 1 | +/- 3 | +/- 2 | +/- 0.05 | 78 | 25.9 | 4.3 | > 100 | 0.2 / 5.0 | 500+ | 0.5/13 | 75 / 330 | -55 to +125 | 4-6 | — | ||
| 6 | 120 | 1.0mm (M) | 1.0mm (F) | 1.45:1 | 3.28 | 1 | +/- 3 | +/- 2 | +/- 0.05 | 78 | 25.9 | 4.3 | > 100 | 0.2 / 5.0 | 500+ | 0.5/13 | 75 / 330 | -55 to +125 | 4-6 | — | ||
| 12 | 120 | 1.0mm (M) | 1.0mm (F) | 1.45:1 | 5.91 | 1 | +/- 3 | +/- 2 | +/- 0.05 | 78 | 25.9 | 4.3 | > 100 | 0.2 / 5.0 | 500+ | 0.5/13 | 75 / 330 | -55 to +125 | 4-6 | — | ||
| 18 | 120 | 1.0mm (M) | 1.0mm (F) | 1.45:1 | 8.53 | 1 | +/- 3 | +/- 2 | +/- 0.05 | 78 | 25.9 | 4.3 | > 100 | 0.2 / 5.0 | 500+ | 0.5/13 | 75 / 330 | -55 to +125 | 4-6 | — | ||
| 6 | 120 | 1.0mm (F) | 1.0mm (F) | 1.45:1 | 3.28 | 1 | +/- 3 | +/- 2 | +/- 0.05 | 78 | 25.9 | 4.3 | > 100 | 0.2 / 5.0 | 500+ | 0.5/13 | 75 / 330 | -55 to +125 | 4-6 | — | ||
| 12 | 120 | 1.0mm (F) | 1.0mm (F) | 1.45:1 | 5.91 | 1 | +/- 3 | +/- 2 | +/- 0.05 | 78 | 25.9 | 4.3 | > 100 | 0.2 / 5.0 | 500+ | 0.5/13 | 75 / 330 | -55 to +125 | 4-6 | — | ||
| 18 | 120 | 1.0mm (F) | 1.0mm (F) | 1.45:1 | 8.53 | 1 | +/- 3 | +/- 2 | +/- 0.05 | 78 | 25.9 | 4.3 | > 100 | 0.2 / 5.0 | 500+ | 0.5/13 | 75 / 330 | -55 to +125 | 4-6 | — |
