TSA70

​(110GHz)

  • Flexible Cable
  • Min Bend 25mm
  • Ruggedized Construction
  • Phase Stable
  • Long Flex Life
  • -55 to 125C
  • (110)1.0mm

75Ohm TSA83

​(3GHz)

  • Low Return Loss

  • Phase Stable ±4@18GHz

  • Amp Stability ±0.2dB
  • Long Flex Life (30K+)
  • Temp -55C to 125C
  • Loss 0.223dB/ft @3GHz

TESTeLINK TSA72​

(27/40/50GHz)

  • Cable Dia 0.130"

  • Low Loss Cable

  • <-100db Shielding

  • Flex Life (60K+)

  • Temp -55C to 125C

  • Attn. 1.04db.ft @ 50GHz

Site-Flex (Rugged)​

(7/9/18/27/40/50GHz)

  • Armored Construction

  • Connectors Options

    • ​Type-N

    • Din 7/16

    • SMA

    • 3.5mm

    • ​2.92mm

    • 2.4mm

Telephone +1 978 374 6840

eMailSales@ConductRF.com

VNA Test Cable solutions

Precision RF Test Cable solutions

VNA4X, VNA50, VNA70

​(40/50/70GHz))

  • Ruggedized Construction
  • Good Phase Stablility
  • ​-55 to 125C
  • 1.85mm(70GHz)
    2.4mm(50GHz)​
    2.92mm(40GHz)
  • NMD Options

TESTeLINK TSA89​

(27/32/40GHz)

  • Hi-Flex Construction

  • Super Low Loss Cable

  • <-100db Shielding

  • Flex Life (80K+)

  • Temp -55C to 125C

  • Attn. 0.67db.ft @ 40GHz

POWeRUN WSA84​

(DC to 18GHz)

  • Cable Dia 0.300"

  • Super Low Loss Cable

  • <-95db Shielding

  • Flex Life (5K+)

  • Temp -55C to 125C

  • Attn. 0.21db.ft @ 18GHz

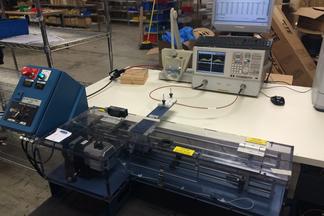

Conductrf flex testing
evaluate stability and life expectancy

ConductRF's flex test routine was developed to equally evaluate the stability and life expectancy of our RF Test Cables.  Our test repeatedly flexes cables while being monitored for VSWR, IL, and Phase Stability ever 20sec., through to failure.

TESTeCON Low Loss

​(18/27GHz)

  • Cable Dia 0.195"

  • Phase Stable ±4@18GHz

  • Amp Stability ±0.2dB
  • Flex Life (10K+)
  • Temp -55C to 125C
  • Attn. 0.330dB/ft @18GHz

Other test solutions

PFw81

​(50/70GHz)

  • Hi-Flex Cable
  • Long Flex Life
  • Phase  & Amplitude Stable
  • -55 to 125C
  • 1.85mm(70GHz)
  • 2.4mm(50GHz)​
  • 2.92mm(40GHz)
  • NMD Options

TESTeCON TEA90

​(18/27GHz)

  • Cable Dia 0.160"

  • Phase Stable ±4@18GHz

  • Amp Stability ±0.2dB
  • Long Flex Life (100K+)
  • Temp -55C to 125C
  • Attn. 0.850dB/ft @18GHz

VNA18, VNA26, VNA40

​(18/27/40GHz)

  • Ruggedized Construction
  • Good Phase Stablility
  • -55 to 125C
  • (18)SMA, Type-N, TNC
  • (27)SMA, 3.5/2.92/2.4mm
  • (40)2.92/2.4mm
  • NMD Options

TESTeLINK PFA61

​(27/40/50/67GHz)

  • Cable Dia 0.104"

  • Light Weght
  • <-100dB Shielding
  • Flex Life (100K+)
  • Temp -50C to 125C
  • Attn. 2.07/ft @67GHz

 ConductRF VNA Solutions Summry : Click Here

 ConductRF Cable Assembly Sector Guide : Click Here

TESTeCON TEA80

​(6/18/27GHz)

  • Cable Dia 0.195"

  • Phase Stable ±4@18GHz

  • Amp Stability ±0.2dB
  • Long Flex Life (50K+)
  • Temp -55C to 125C
  • Attn. 0.683dB/ft @18GHz
