VNA Systems are very expensive pieces of equipment. To save test ports, ConductRF can provide NMD Port Saver Adapters for In Series and Between Series for Type-N to 1.85mm Ports. Download our complete offering to review your needs.
ConductRF offers several outstanding RF Cable Assembly solutions emphasizing Low Loss performance for both Test and System Integration applications. Check Links Below for Detail.
Low Loss/High Power Products
WSA74 - POWeRUN Series - 0.33dB/ft to 18GHz
WSA84 - POWeRUN Series - 0.22dB/ft to 18GHz
TSA74 - TESTeCON Series - 0.33dB/FT to 18GHz
TSA89 - TESTeLINK Series - 0.68dB/ft to 40GHz
TSA72 - TESTeLINK Series - 1.04dB/ft to 50GHz
Low Loss/Production Solutions
LMR - Solutions DC to 6GHz+
Most ConductRF Cable Assembly solutions are considered Low Loss by industry norms, however, the above solutions exemplify this characteristic.
Knowing what causes PIM is the first step in avoiding PIM issues. Download our PIM advice HERE

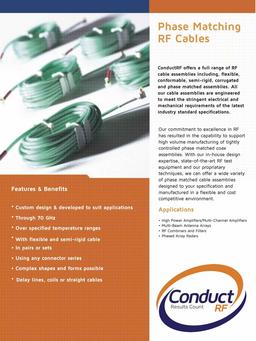

Our Phase Matching skills and proprietary procedures are some of the best in the industry and allow us to build assemblies in both flexible and semi-rigid styles to 0.5° per GHz or better. Let us help you identify the best cable & connector termination options to meet your needs, because not all termination or cable constructions lend themselves to Phase Matching. For advice on Phase Matching, click HERE
ConductRF support a number of solutions for enhancing cable assemblies with extra ruggedization or crush resistant armor. Check out our quick and easy check list HERE.
ConductRF recently introduced new SMA Probe Tip Solutions that support applications up to 20GHz. These are excellent for many strip-line testing applications. Download our product overview for more detail.
Our LSA Series of cables offer performance flexible cable alternative to Formed Semi-Rigid. Using our Spiral Wrap Shielded Cables, these solutions can significantly improve ease of installation for assemblers and technicians.
New RF cables for customer applications in recent years that were enhanced solutions based on original RG cables. These offer improved performance electrically and mechanically.
ConductRF supports increasingly complex Multi-port RF Applications used Standard D38999 Circular Styles & the latest VITA67 Backplane Modules but many customers wish to just purchase RF Cables they can "Plug-in" themselves. Click on the Image for details.
ConductRF supports several environmental requirements with specialized materials. Our Low Smoke/Zero Halogen Jacketed Cable Assembly products offer solutions up to 18GHz and we offer various products in the area focus at Naval Shipboard needs;
LSB - Ship-Board DC to 8GHz Solutions
SBA - Ship-Board DC to 18GHz Solutions
Low PIM Connectors & Adapters
DAS Network designers can go to iBwave and download our VEX file at this link to import our solutions in to your own library. iBWave Download
